PVDF塔填料

2020/9/1 9:16:53


产品名称:PVDF塔填料
产品用途:PVDF填料是一种通过挤出注塑工艺将PVDF树脂粒料加工而成的填料,具有机械强度大、耐化学腐蚀性、耐高温性、耐氧化性、耐候性、耐辐射性、低表面能、低摩擦系数和自洁性等优势,同时保留塑料填料的空隙大、通量大、阻力小、能耗低、重量轻、易装卸、可重复使用等优点,特别适用于石油、化工等行业的填料塔中使用,能大大地延长塔的运行周期,减少设备的检修次数,节约运行成本。
产品优点:与陶瓷填料相比:拥有同样优异的耐腐蚀性能,但PVDF具有更好韧性、自洁性,同时质轻易装填,清洗后可重复利用;避免了陶瓷填料质脆,装填使用过程中易破碎,重量大,易脏污,报废处理成本高等问题。
与金属填料相比:拥有更优的耐腐蚀性能、机械强度、自洁性,清洗后可重复使用,避免了金属填料腐蚀污染、耐污性较差,特别对于易自聚的物料会结块堵塞塔等问题,同时还有金属填料报废处理成本高等问题。
与塑料填料相比:具有普通塑料或其他材质无法比拟的机械强度、耐高温性、耐氧化性、低表面能、低摩擦系数和自洁性、耐酸碱性、耐化学腐蚀性,同时保留塑料填料的优点,避免了塑料填料耐候性、耐氧化性差等缺点,长期使用不会出现脆化和粉化。

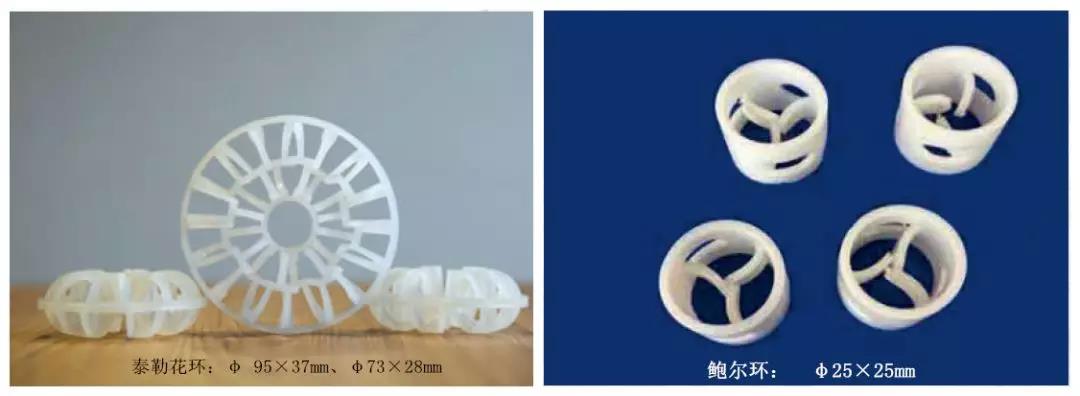

产品规格Product specifications:
 泰勒花环Teller Rosette:φ 95×37mm、φ73×28mm
 鲍尔环Pall ring:  φ25×25mm

Product name: PVDF tower packing
Product application:PVDF packing is made of PVDF resin granules by injection molding process, possessing the properties of high mechanical strength, chemical corrosion resistance, high temperature resistance, oxidation resistance, weather resistance, radiation resistance, low surface energy, low friction coefficient and the advantages of the self-cleaning property, while retaining the advantages of large gap, large flux, low energy consumption, light weight, easy loading and unloading, reusable, etc; It is especially suitable for packing tower in petroleum, chemical and other industries, and can greatly extend the operation cycle of the tower,reduce the maintenance frequency of the equipment and save the operation cost.
Product advantages:
Compared with ceramic packing: These two have the same excellent corrosion resistance, but PVDF has better toughness, self-cleaning, and can be easilyreused after cleaning. It avoids the problems of brittle ceramic packing which is easy to break, heavy weight, easy to smudgy and high disposal cost when using.
Compared with metal packing, it has better corrosion resistance, mechanical strength and self-cleaning, and can be reused after cleaning. It avoids corrosion pollution of metal packing, prevents the materials blocking the tower especially when the materials are easy to self-assemble. Moreover, you needn’t to face high disposal cost of metal packing.
Compared with plastic packing: it has incomparable mechanical strength, high temperature resistance, oxidation resistance, low surface energy, low friction coefficient and self-cleaning, acid and alkaline resistance, chemical corrosion resistance. It avoids the poor weatherability and oxidation resistance of the plastic packing. It will not appear to be brittle and pulverized for a long time.
